P6 Flexible Curved LED Mall Signage | Exhibition Round Screen Solutions
High flexibility for curved installations
Vivid colors and high brightness
Lightweight and durable
High resolution for clear images
Modular design for easy maintenance

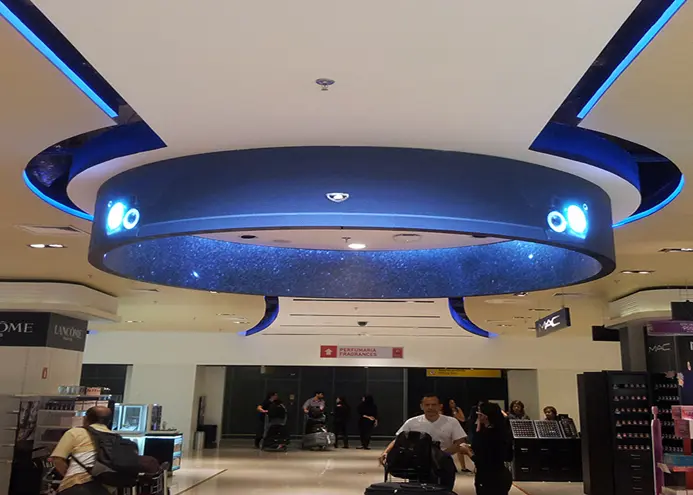

Radiant P6 Flexible LED Display
Curved Advertising Solutions for Immersive Commercial Spaces
1600 nits high brightness performance
Our P6 flexible LED display revolutionizes visual communication in retail and exhibition environments with ultra-fine 6mm pixel pitch and 1600 nits high brightness performance. Patented modular design enables seamless curved installation and circular surface adaptation, and IP43 protection ensures reliable operation in indoor public spaces.
Technical Superiority
- 6.0mm Pixel Density27777 dots/m² resolution
- 160° Ultra-Wide Viewing Angle
- Front Magnetic Module10min maintenance
Energy Efficiency
460W/m²
Peak Consumption
130W/m²
Average Consumption
Magnetic Module
System
Application Scenarios
Commercial Spaces
• Curved window displays
• Brand flagship dynamic walls
• Immersive exhibition tunnels
• Curved window displays
• Brand flagship dynamic walls
• Immersive exhibition tunnels
Cultural Venues
• Museum timeline displays
• Art gallery installations
• 360° product launches
• Museum timeline displays
• Art gallery installations
• 360° product launches
Corporate Environments
• Curved lobby signage
• Interactive video walls
• Boardroom displays
• Curved lobby signage
• Interactive video walls
• Boardroom displays
Special Installations
• Cylindrical columns
• Concave/convex surfaces
• Circular spatial design
• Cylindrical columns
• Concave/convex surfaces
• Circular spatial design
Details Specification
| Item | RDT-TS6.0 | Pixel Pitch | 6.0mm |
| Module size | 240mm x 160mm | Module Resolution | 40 x 26 pixels |
| Module Weight | 0.32 kg | Physical Density | 27777 dots/m² |
| Brightness | 1600nits | Refresh Rate | 1920-3840 Hz |
| Driving Mode | Constant Current 1/16 | Gray Level | 16 bit |
| Working Voltage | 100-240V AC, 50&60Hz | Protection Level | IP43 |
| Maximum Power Consumption | 460W /m² | Average Power Consumption | 130W /m² |
| View Angle | 160ºH/140ºV | Viewing Distance | >6 m |
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH |
| LED Life(Normal Tep) | 100,000 Hours | Viewing Angle | 140°/140° |
| Application | Indoor | Installation Type | Fixed installation |
| Maintenance Method | Front (Magnetic module) | Software System | Novastar |
