P2 Flexible LED Video Wall | Curved Advertising Screen for Shopping Malls
Bright
Remote Control
Weatherproof
Energy-Saving

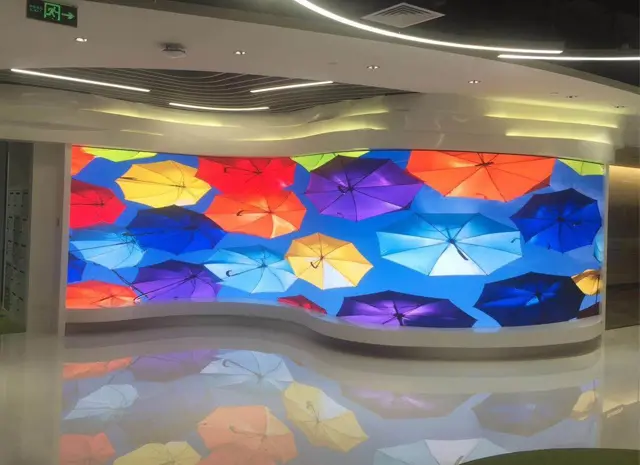

P2 Flexible LED Video Wall
Precision-engineered for mission-critical visual environments, delivering superior visual performance with 1000nits HDR Display featuring ±15° Adaptive Curvature. 3840Hz Refresh Rate combined with 16-bit Color Depth ensures ultra-smooth visual transitions and true-to-life color reproduction.
Professional Features
- 6POD CertifiedProfessional-grade certification for broadcast environments
- 3D LUT CalibrationCinema-quality color accuracy across viewing angles
- Modular FlexibilitySeamless concave/convex curved configurations
Modular Design
500×500mm
Panel Size
Front/Rear
Installation Options
IP65
Weatherproof (Outdoor)
IP54
Dustproof (Indoor)
Smart Control
Intelligent Temperature Control (-30℃~55℃)
Automatic Curvature Compensation System
24/7 Continuous Operation Reliability
Spherical/Oval Configurations Support
Deployment Scenarios
▹ Luxury Shopping Mall Atriums
▹ Brand Exhibition Halls
▹ Interactive Gaming Zones
▹ Corporate Command Centers
Details Specification
| Item | RDT-TS2.0 | Pixel Pitch | 2.0mm |
| Module size | 240mm x 160mm | Module Resolution | 120 x 80 pixels |
| Module Weight | 0.32 kg | Physical Density | 250000 dots/m² |
| Brightness | 800-1000nits | Refresh Rate | 1920-3840 Hz |
| Driving Mode | Constant Current 1/40 | Gray Level | 16 bit |
| Working Voltage | 100-240V AC, 50&60Hz | Protection Level | IP43 |
| Maximum Power Consumption | 460W /m² | Average Power Consumption | 130W /m² |
| View Angle | 160ºH/140ºV | Viewing Distance | >2 m |
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH |
| LED Life(Normal Tep) | 100,000 Hours | Viewing Angle | 140°/140° |
| Application | Indoor | Installation Type | Fixed installation |
| Maintenance Method | Front (Magnetic module) | Software System | Novastar |
