P2.9 Transparent LED for Luxury Stores | 65% Clarity & Ultra-Slim
High transparency up to 65 percent
Ultra-slim modern design
P2.9 pixel pitch for clear display
Low power consumption
Energy-efficient
P2.9 Transparent LED Display

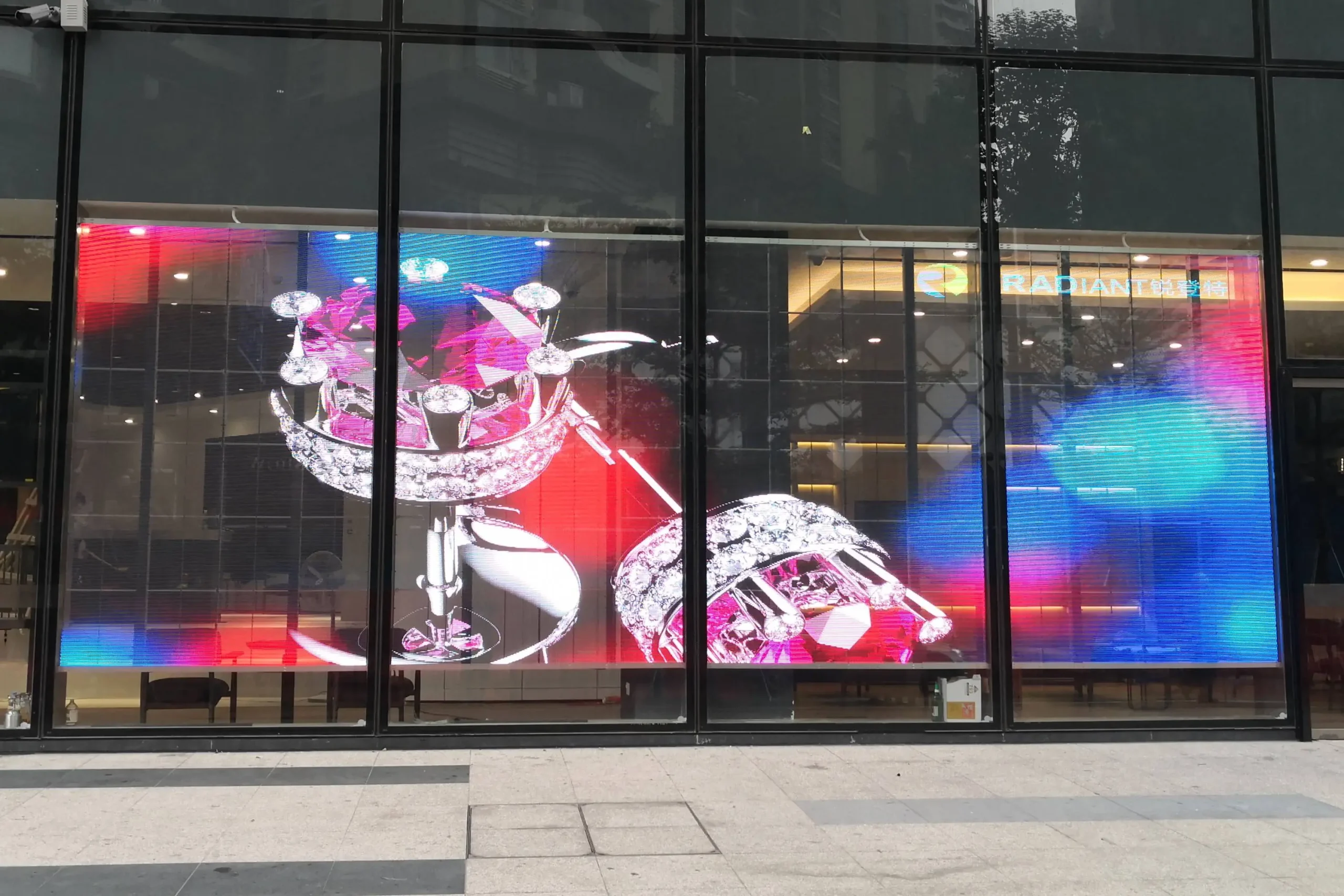

Elevate luxury retail environments with the groundbreaking P2.9 Transparent LED Display, engineered to merge cutting-edge technology with aesthetic elegance. Boasting 65% transparency, this ultra-slim 2.9mm-pixel-pitch system allows unobstructed visibility of high-value merchandise while projecting vibrant 16-bit color visuals at
4,000 nits peak brightness
– ensuring brilliance even in sunlit storefronts.
Technical Excellence
- Transparent Innovation65% light transparency with 2.9mm pixel precision
- High-Density Display5.64K dots/m² for crystal-clear imagery
- Optimal Visibility140° wide viewing angle maintains color integrity
Design Features
IP43
Protection Rating
3,840Hz
Refresh Rate
100,000h
LED Lifespan
250W/m²
Power Efficiency
Ideal Applications
Flagship boutiques • Airport duty-free zones
Automotive showrooms • Luxury watch displays
Jewelry retail environments • Museum exhibits
High-end product launches • Architectural integration
Details Specification
| Item | RDT-TP2.9 | Pixel Pitch | 2.9mm x 5.8mm |
| Module size | 500mm x 250mm | Cabinet size | 1000mm x 500mm |
| Cabinet Resolution | 336 x 84 pixels | Cabinet Weight | 5 kg |
| Physical Density | 56448 dots/m² | Brightness | 2500-4000nits |
| Driving Mode | Constant Current 1/21 | Refresh Rate | 1920-3840 Hz |
| Working Voltage | 100-240V AC, 50&60Hz | Gray Level | 16 bit |
| Maximum Power Consumption | 800W /m² | Average Power Consumption | 250W /m² |
| Protection Level | IP43 | Viewing Distance | >3m |
| Working Temperature | -10℃~ +50 ℃ | Working Humidity | 10 – 95 % RH |
| LED Life(Normal Tep) | 100,000 Hours | Viewing Angle | 140°/140° |
| Application | Indoor install outdoor view | Installation Type | Fixed installation |
| Maintenance Method | Front and rear | Software System | Novastar |
